Bühnenmonitorlautsprecher

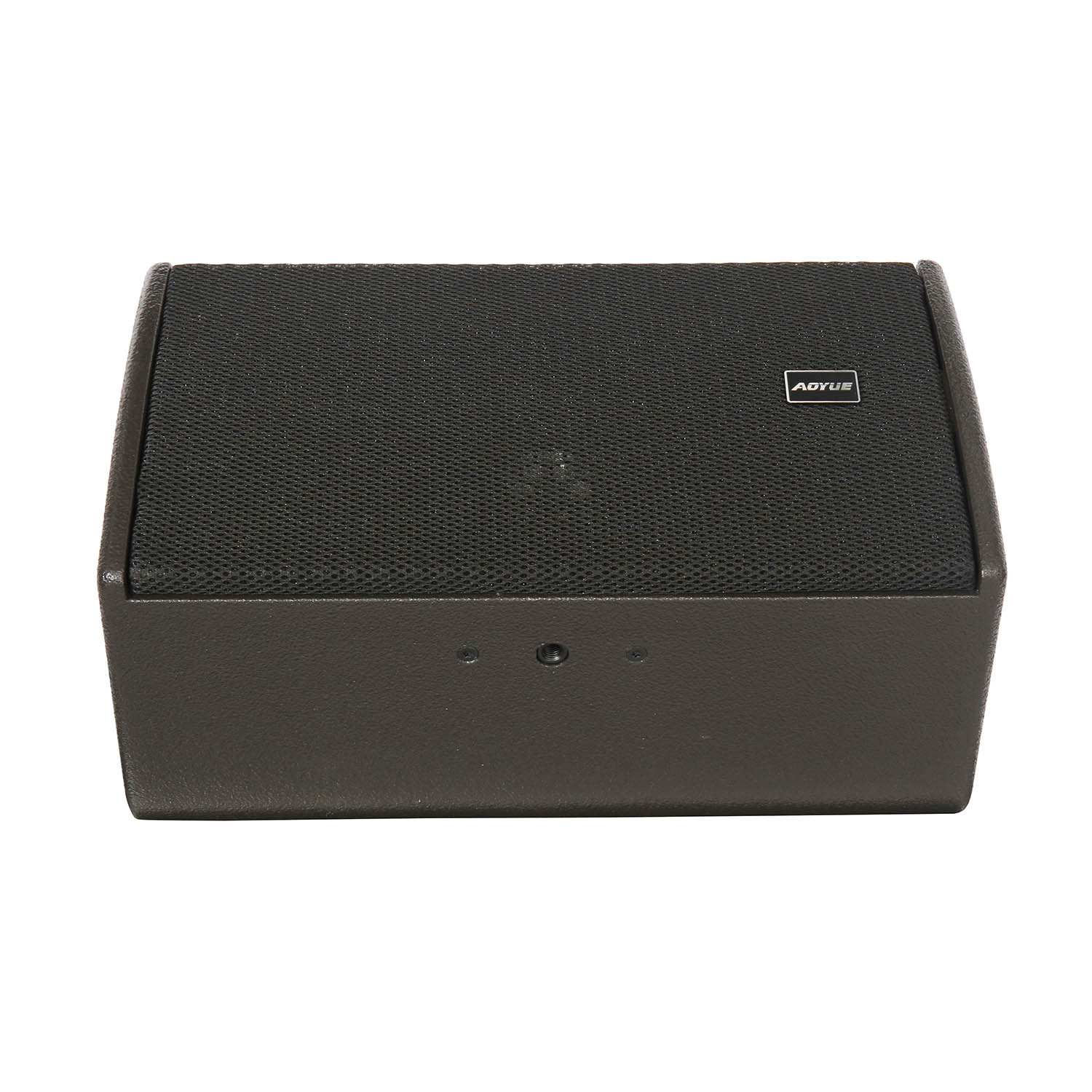

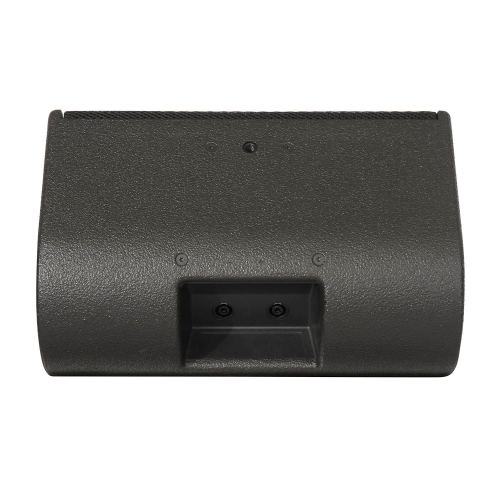

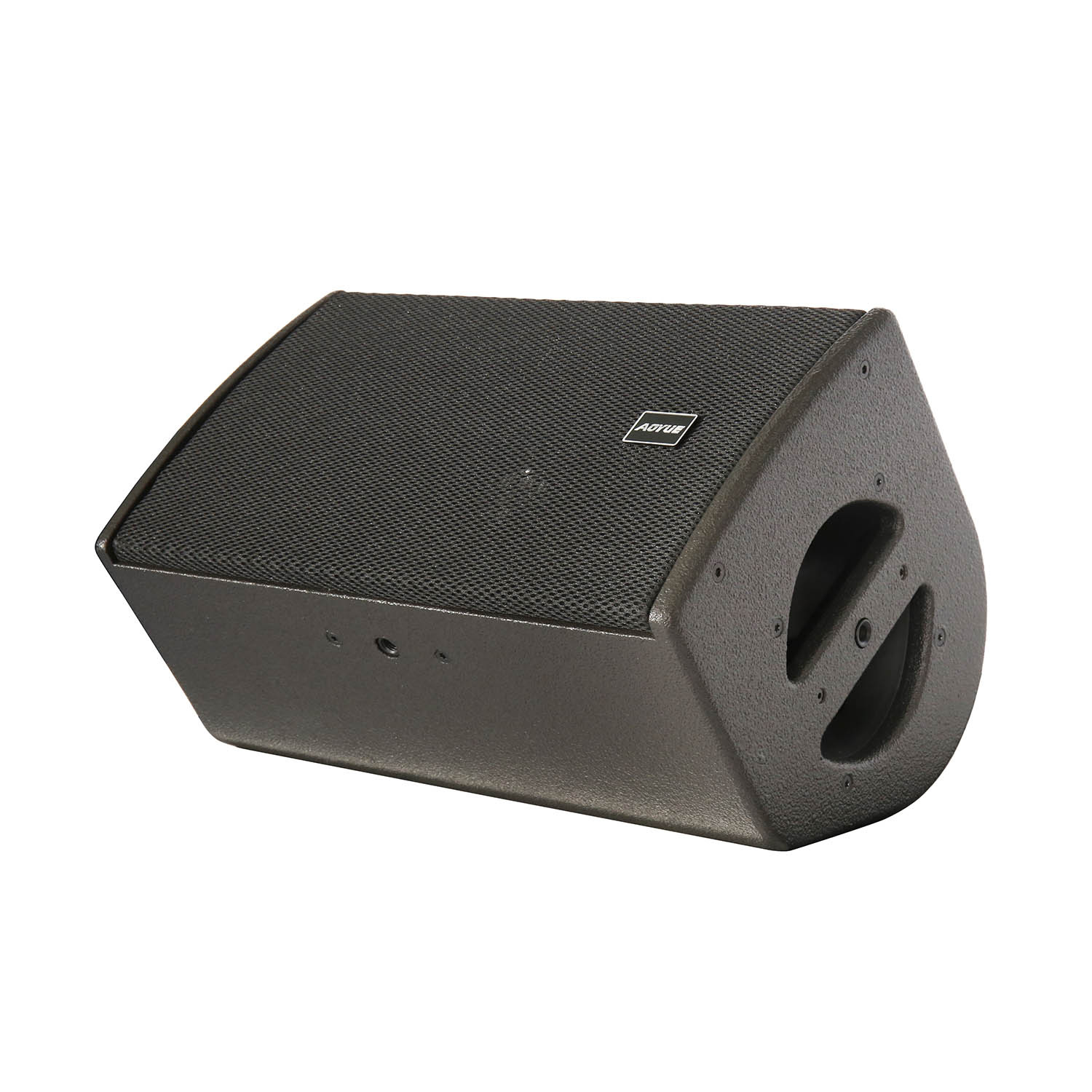

Niederfrequenter 2-Wege 8 Zoll passiver XT-08 Koaxial-Bühnenmonitorlautsprecher
punkt nr.: XT-08
Type : Passive
Max SPL：129 dB
Bandwidth (-10 dB) : 60 Hz – 20 kHz
Transducers LF : 1 x 8" ; HF : 1 x 1.5"
Nominal directivity (-6 dB) : 100° axisymmetric
Weight : 12kg
Max SPL：129 dB
Bandwidth (-10 dB) : 60 Hz – 20 kHz
Transducers LF : 1 x 8" ; HF : 1 x 1.5"
Nominal directivity (-6 dB) : 100° axisymmetric
Weight : 12kg
beschreibung
| XT-08 2 way stage monitor system coaxial speaker | |
|
Usable bandwidth (-10 dB)
|
60 Hz-20 kHz
|
|
Maximum SPL
|
129 dB
|
|
Nominal directivity (-6 dB)
|
100° axisymmetric
|
|
Monitor angle
|
35°
|
|

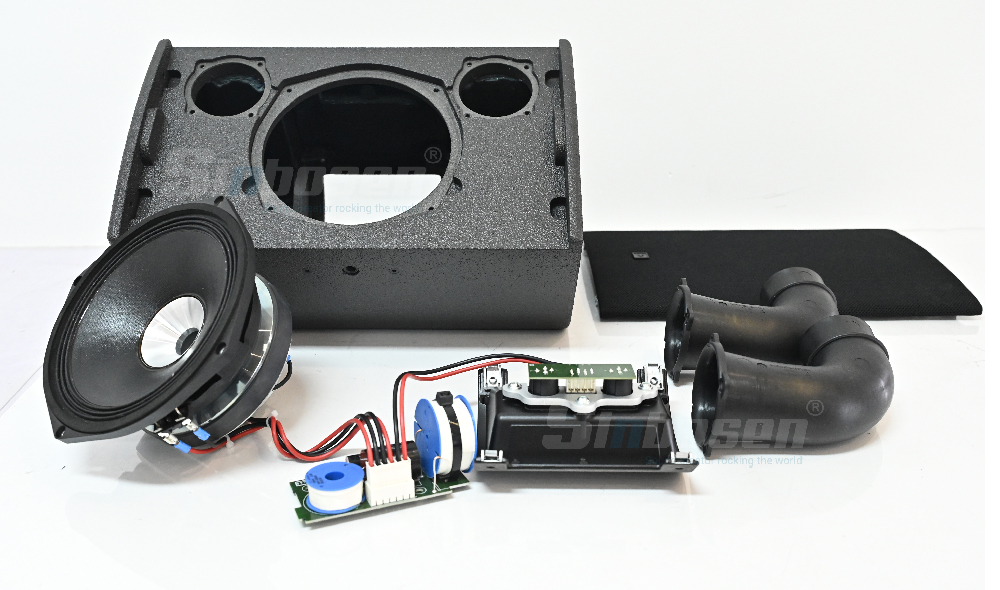

Transducers
|
LF: 1 × 8″ cone driver
|
|
HF: 1 × 1.5″ diaphragm compression driver, neodymium
|
|
|
Acoustical load
|
LF: bass-reflex, progressive vent design
HF: conical waveguide |
|
Nominal impedance
|
8 Ω
|
|
Connectors
|
IN: 1 × 4-point speakON
|
|
LINK: 1 × 4-point speakON
|
|
|
Rigging and handling
|
1 handle
|
|
4 threaded inserts
|
|
|
one 35 mm pole socket
|
|
|
Weight (net)
|
12 kg / 26.5 lb
|
|
Cabinet
|
FIrst grade Russian birch plywood
|
|
Front
|
Coated steel grill
|
|
Neutral 3D fabric
|
|
|
Finish
|
Dark grey brown
|
| FEATURE |
| ► Studio-level sound quality, high sound performance |
| ► COAXIAL technology for smooth off-axis response |
| ► Clear low-frequency power with progressive vent design |
| ► Custom filters are used in the internal passive crossover network |
| ► Coaxial transducer arrangement produces 100°axisymmetric directional output with smooth tonal response |
| DIMENSIONS |
| OPTIONAL ACCESSORIES |

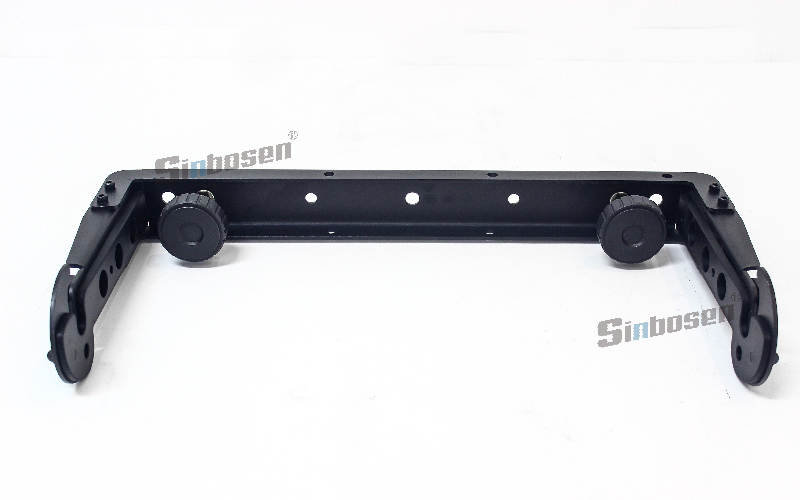

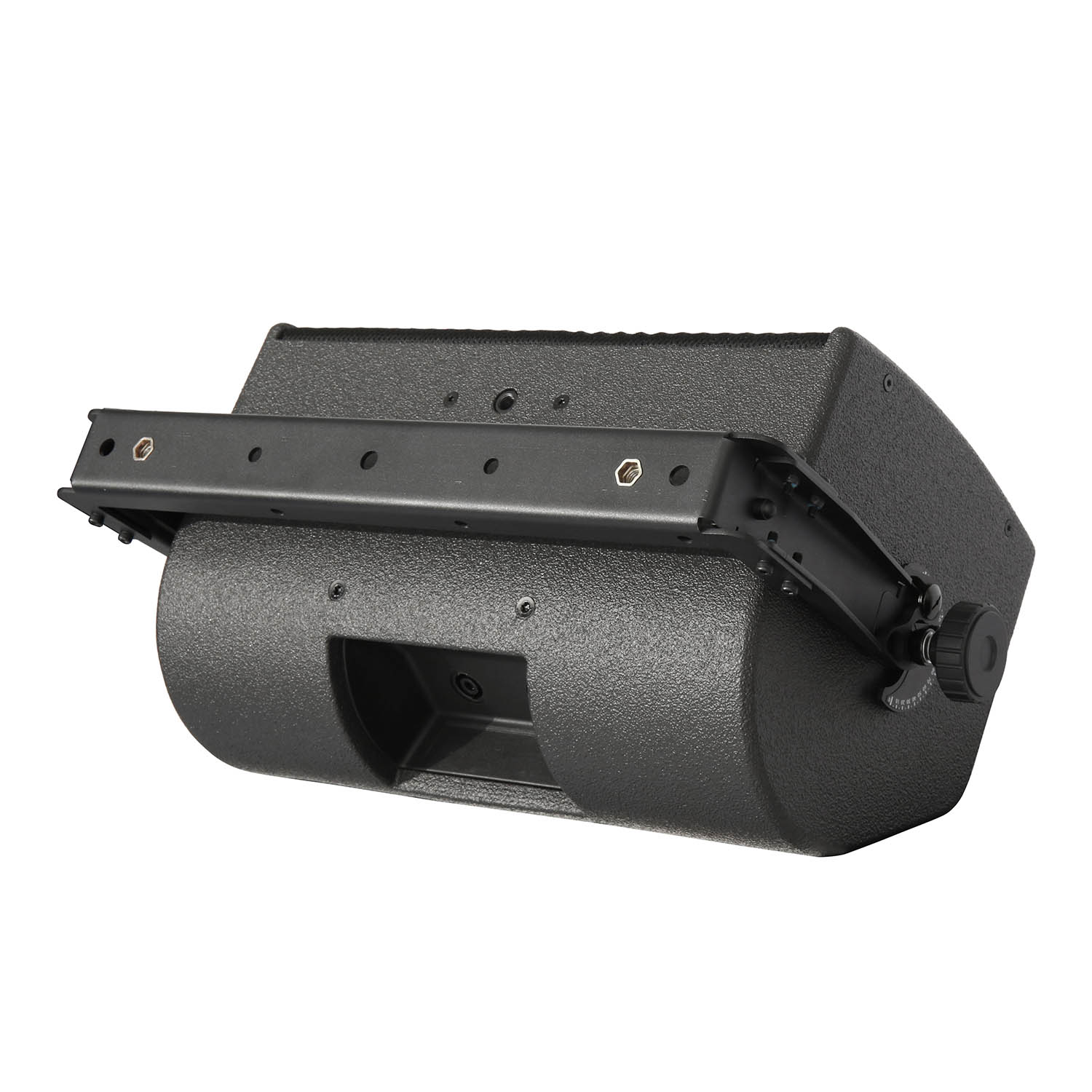

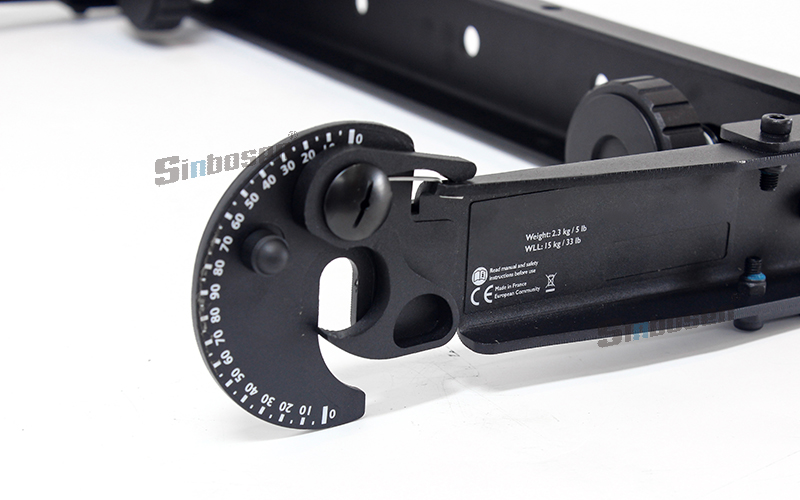

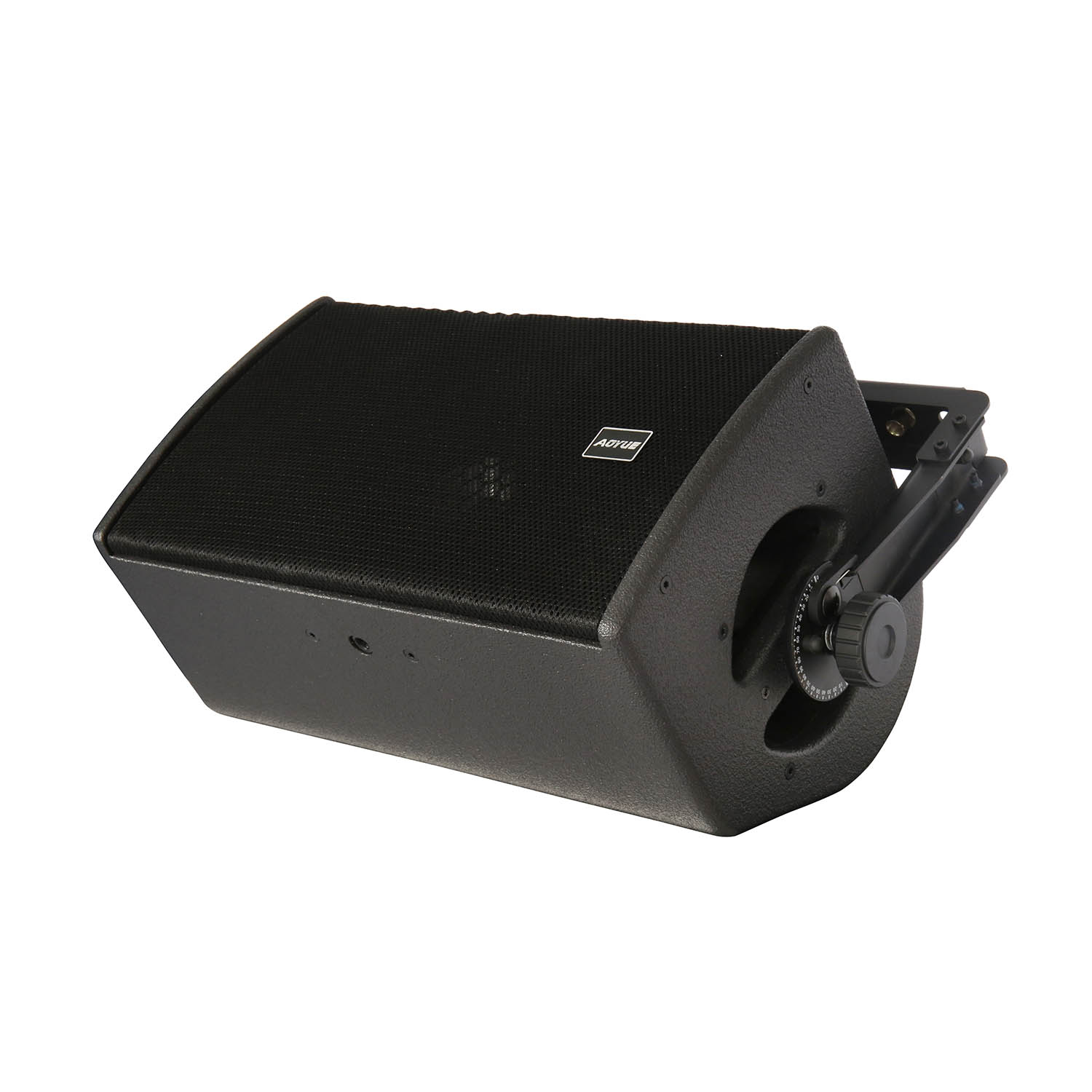

| BRACKET | |
 |
 |

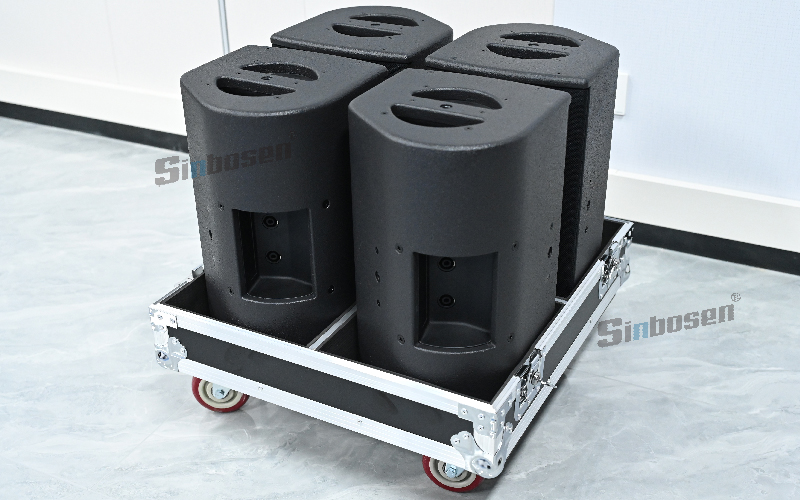

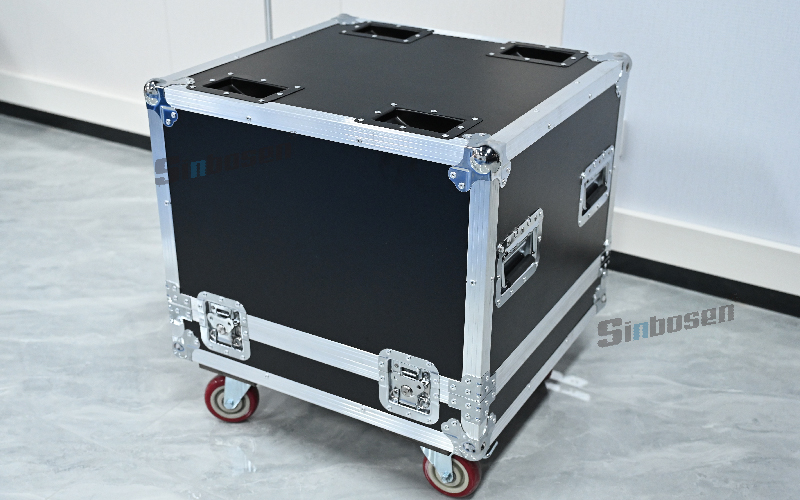

| 4in1/2in1 FLIGHT CASE | |
 |
 |
