Bühnenmonitorlautsprecher
15-Zoll-2-Wege-Bühnenmonitorsystem Niederfrequenz-Koaxiallautsprecher
punkt nr.: XT15
Max SPL: 138 dB
Bandwidth: 55 Hz- 20 KHz
Transducers: LF 15" , HF 3"
Weight: 21 kg / 46 lb
Directivity: H: 60° V: 40°
Bandwidth: 55 Hz- 20 KHz
Transducers: LF 15" , HF 3"
Weight: 21 kg / 46 lb
Directivity: H: 60° V: 40°
beschreibung
| XT15 HIQ 2 way stage monitor system coaxial speaker | |
| Usable bandwidth (-10 dB) | 55 Hz – 20 kHz |
| Maximum SPL | 138 dB |
| Nominal directivity (-6 dB) | Vertical: 60° symmetric |
| horizontal: 40° symmetric | |
| Monitor angle | Without risers: 35° |
| with risers: 55° | |
| Transducers | LF: 1 × 15″ cone driver |

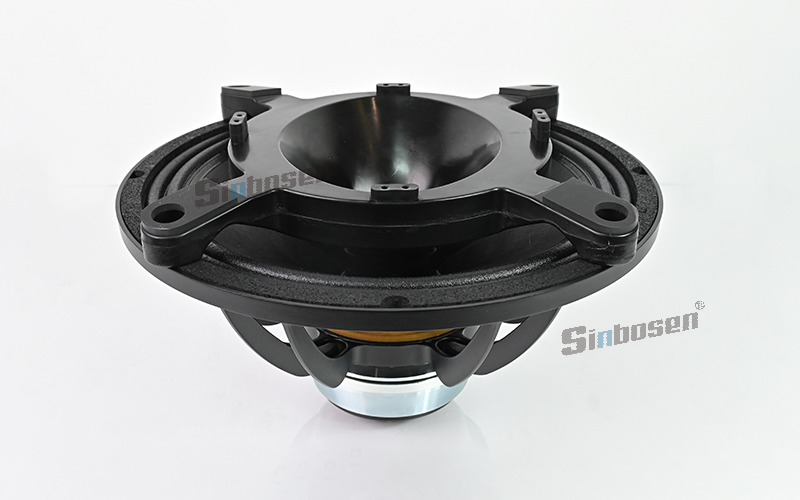

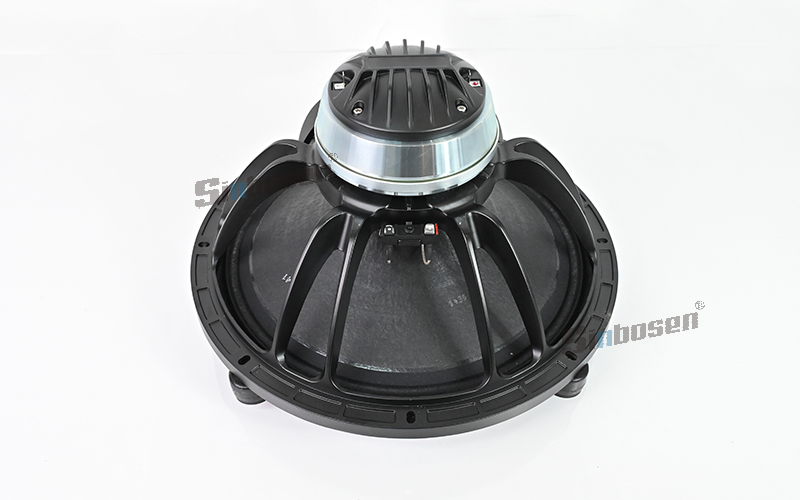

| HF: 1 × 3″ diaphragm compression driver, neodymium | |
| Acoustical load | Load bass-reflex laminar venting technology ellipsoidal waveguide |
| Nominal impedance | LF: 8 Ω |
| HF: 8 Ω | |
| Connectors | IN: 1 × 4-point speakON |
| LINK: 1 × 4-point speakON | |
| Rigging and handling | 2 handles |
| 5 threaded inserts | |
| 2 × 35 mm pole sockets | |
| Weight (net) | 21 kg / 46.3 lb |
| Cabinet | FIrst grade Russian birch plywood |
| Front | Steel with anti-corrosion coating |
| acoustically neutral 3D fabric | |
| Finish | Dark grey brown |
FEATURE
| ► Laminar Ventilation Technology is a progressive ventilation design that greatly reduces turbulent noise, thereby increasing output capacity. |
| ► Strong vocal impact with high immunity to feedback |
| ► Controlled H. and V. directivity with ellipsoidal waveguide.By providing a distinct coverage angle for both vertical and horizontal dimensions, it extends the versatility of the enclosures, as well as improving control over the reverberant field. |
| ► Clear low-frequency power with the laminar venting technology |
| ► XT15 HiQ features four runners on the bottom to protect the enclosure. |
| ► XT15 HiQ features risers that allow to change the monitor angle from 35°to 55°relative to the vertical. |

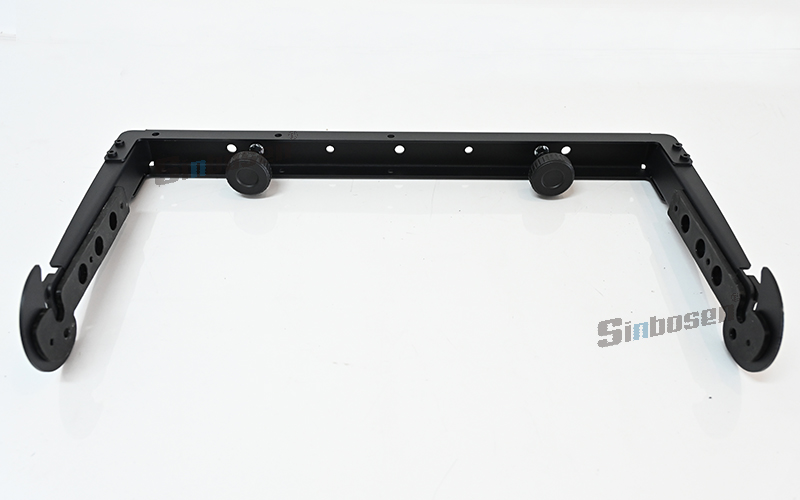

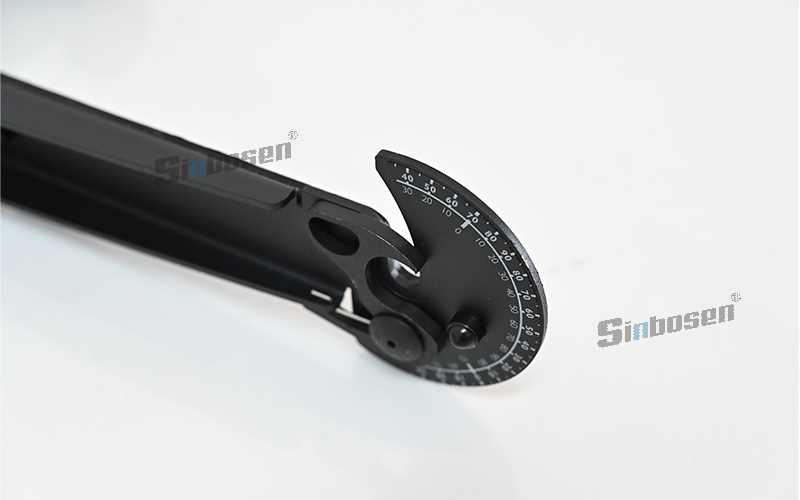

| ► XT15 HiQ can be fitted with a short U-bracket or a long U-bracket. The brackets are secured in the enclosure inserts with two threaded knobs. |
| ► And The threaded knobs feature a washer as a safety to avoid the accidental loosening of the knob. |
| ► U-bracket or Fasteners can be used for flying,wall-mounting,ceiling-mounting. |
XT15 15 INCH MONITOR SPEAKER IN FACTORY
